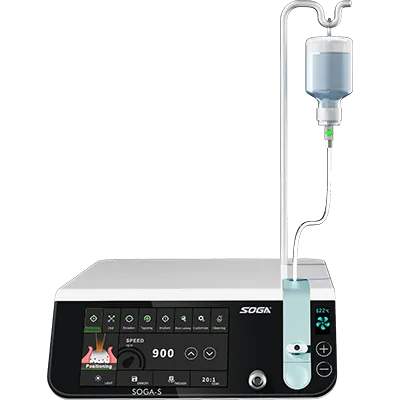

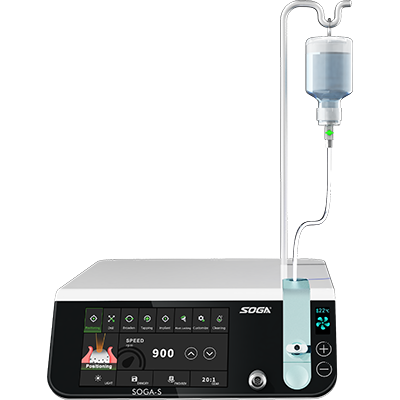

SOGA Implant motor-S
Products




Information
✅Micromotor Made in Switzerland
✅90g Handpiece and is produced in Germany.
✅Multifunctional Foot Controller: Water Flow Adjustment,Program Switch, Rotating Direction.
✅Rotation Speed Range:300-40,000 rpm
✅Torque Range:5-80Ncm
Technical specification
Name: SOGA Implant Motor
Rotation Speed Range: 300-40,000rpm
Torque Range: 5Ncm-80Ncm
Gear Ratios: 16:1 20:1 27:1 1:1 1:2 1:4 1:5
Max Pump Output: 110ml/min
Main Unit Dimensions: 236mm*215mm*77mm
Motor Dimensions: Ø22mm*L108mm
Handpiece Dimensions: Ø22mm*L96mm
Motor Weight: 90G
Handpiece Weight: 80G
Power Supply: Ac220v 50-60Hz
Length: 2m
Motor Type: Swiss Made Brushless Motor
Handpiece Type: Built-in with Germany Made Bearing
